STM32F4-Discovery with SSD1289 TFT

I decided to connect these modules and check how well stm32-sdr firmware would run. There is no receiver, only the stm32f4-Discovery and TFT display.


Click on any picture for the large version. Use your Browsers Back button to return to this page.

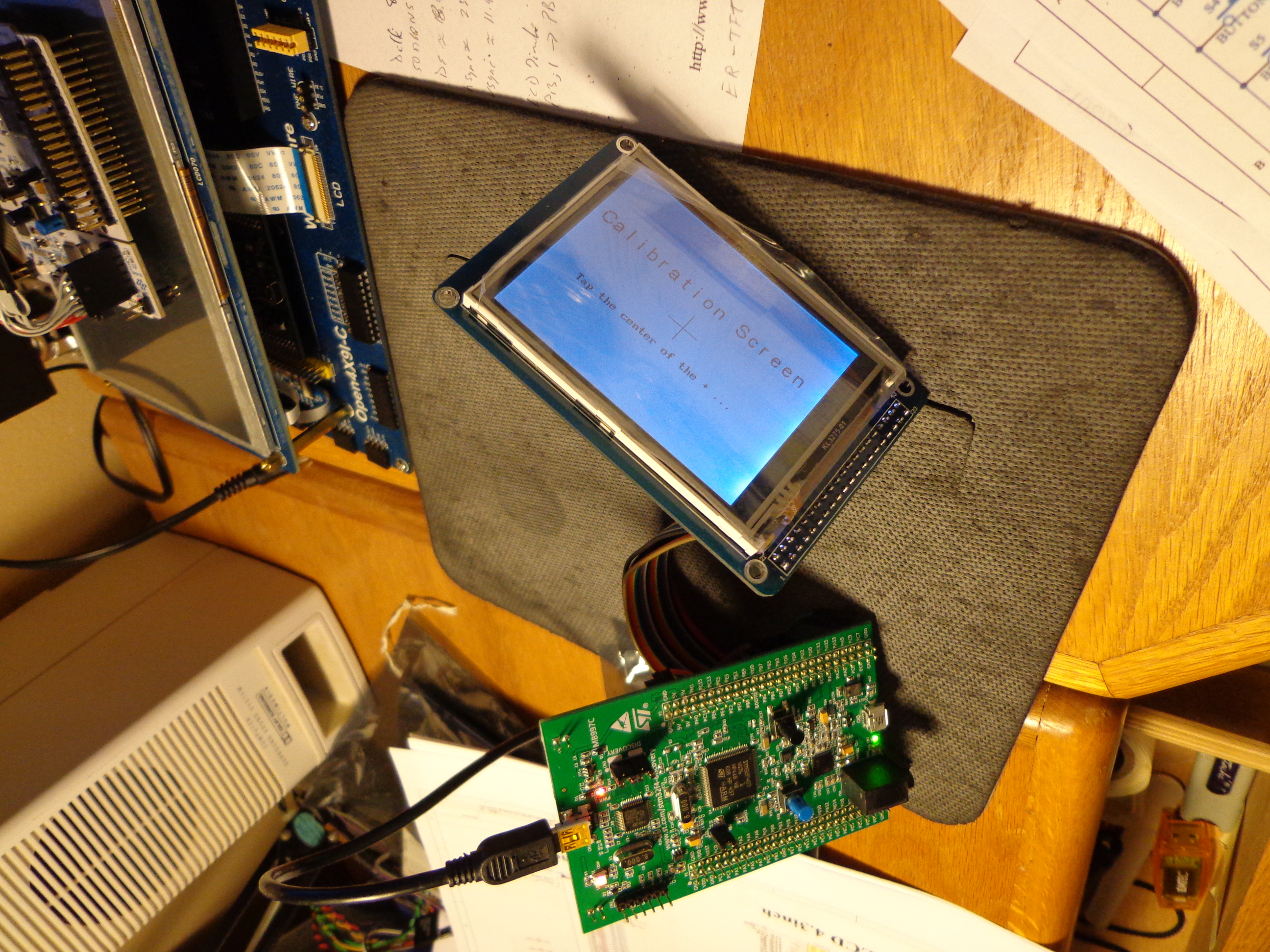

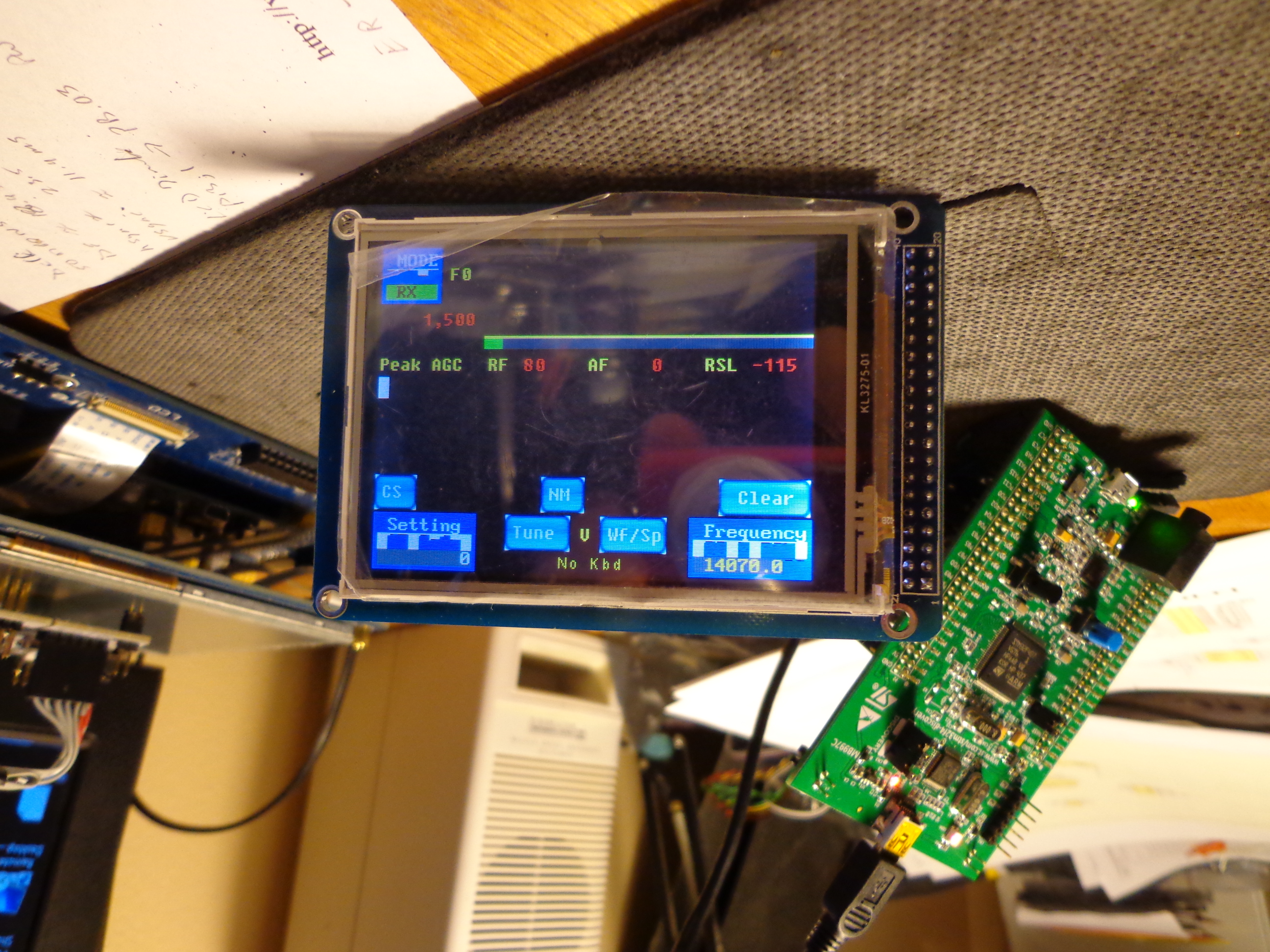

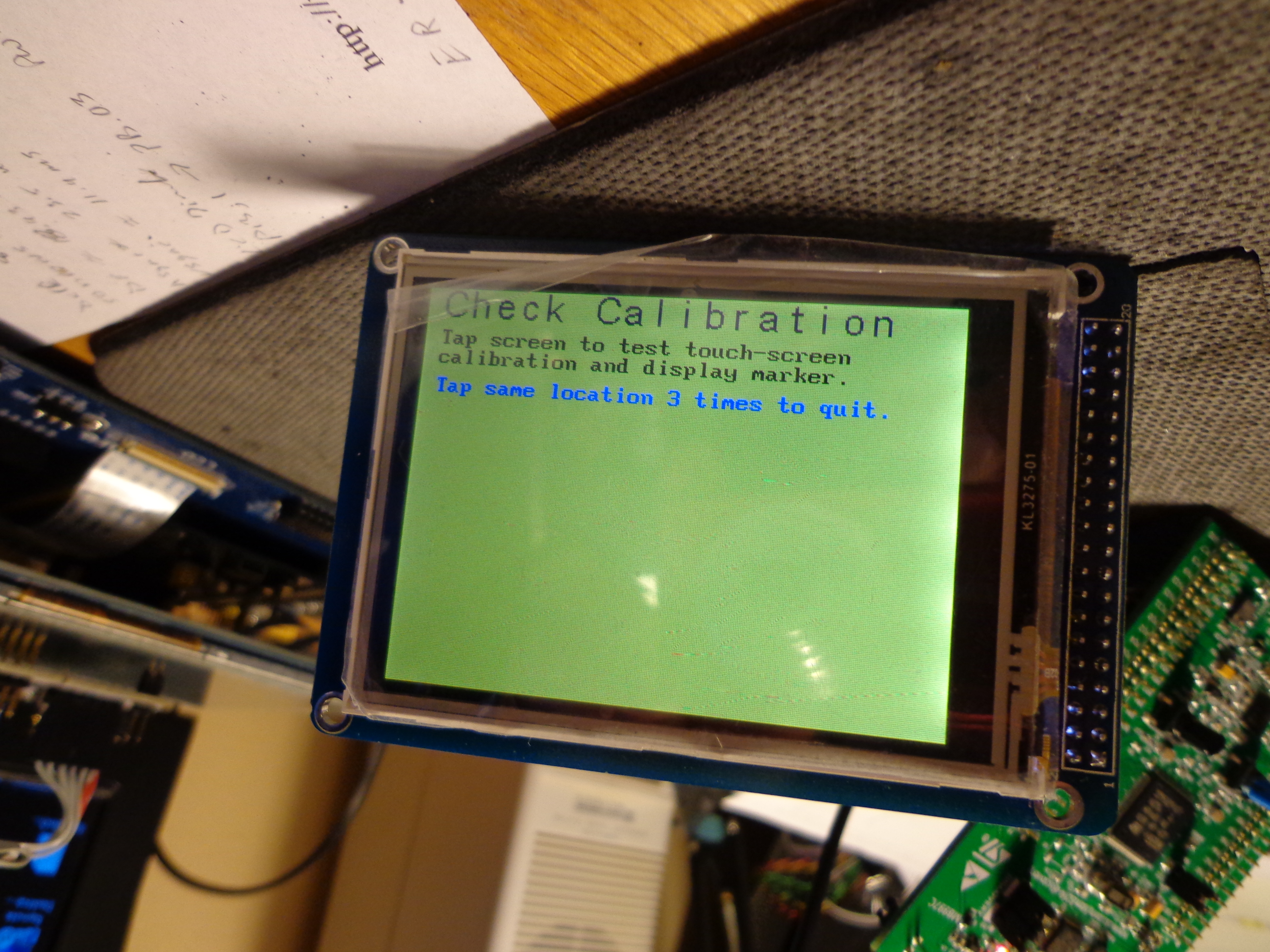

View of first calibrate touch screen and circuits. View of second touch calibrate screen and circuits. view of circuit boards and user screen.
